拉铆螺母

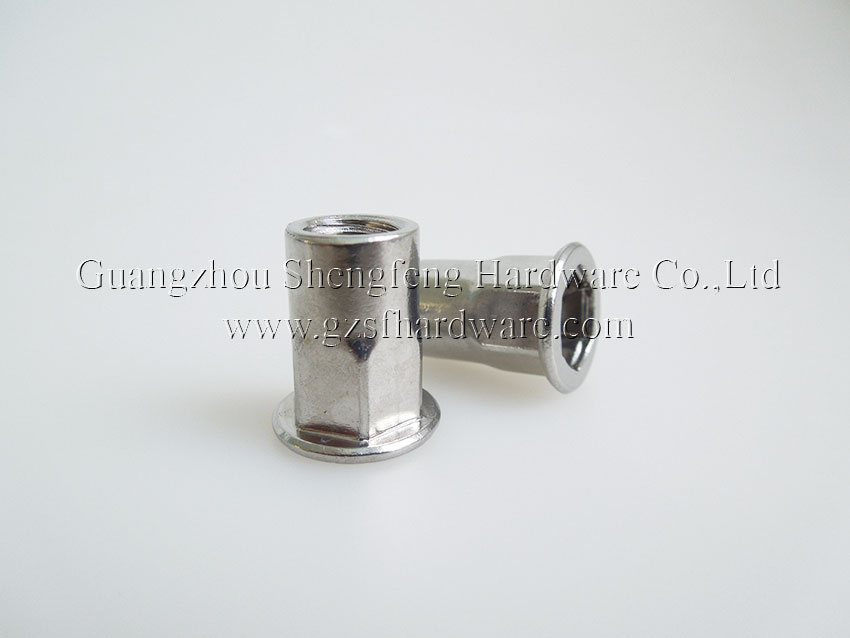

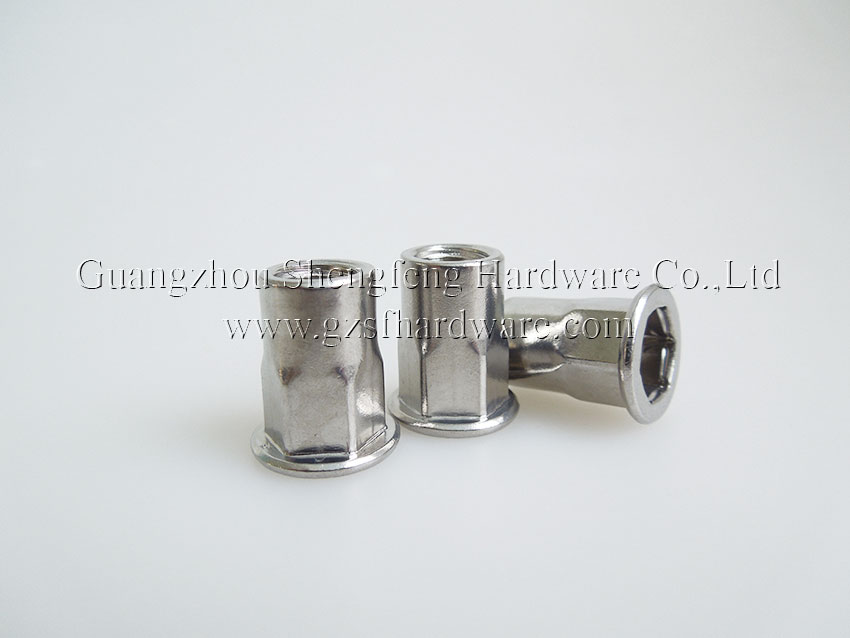

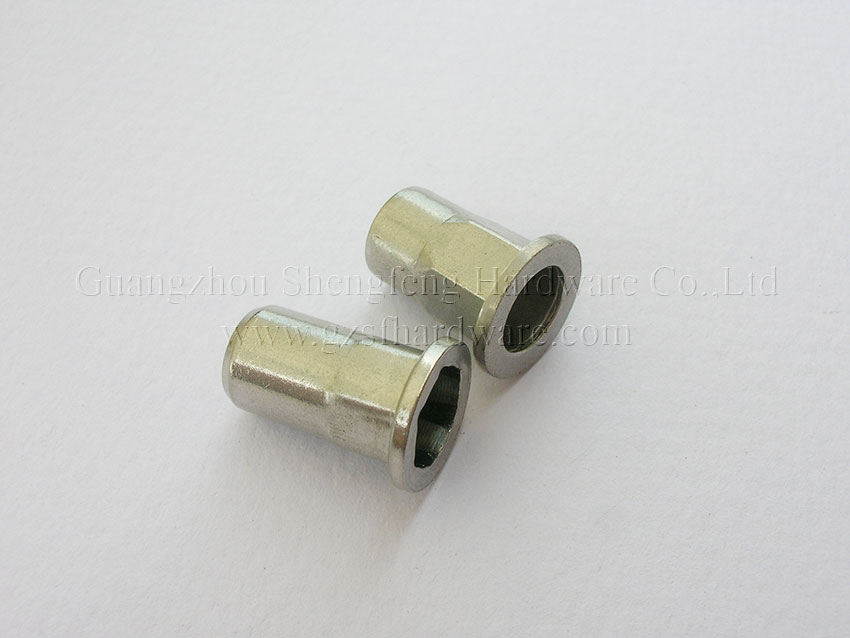

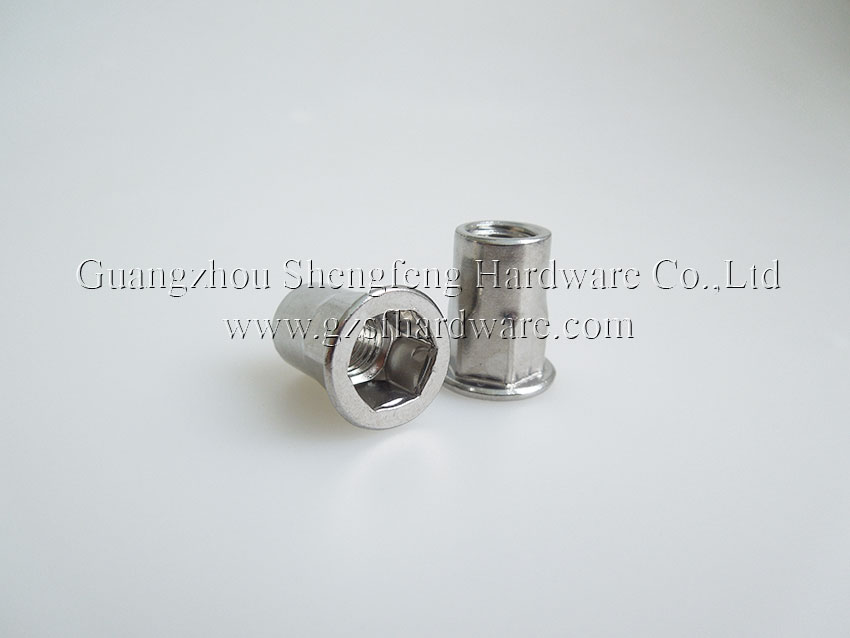

平头半六角铆螺母

材质:304不锈钢、316不锈钢、碳钢、铝合金、铜单位:mm螺纹规格Thread? Size产品编号Part Number钻孔直径Open End(通孔)Closed End(盲孔)(H)Grip Range(铆接钣厚)d0+0.05d(max)Dk±0.30K±0.20L ±0.30d(max)Dk±0.30K±0.20L
品牌:晟峰 S.F 表面处理:多种
产品详情


材质:304不锈钢、316不锈钢、碳钢、铝合金、铜 单位:mm
螺纹规格
Thread? Size
产品编号
Part Number
钻孔直径
Open End(通孔)
Closed End(盲孔)
(H)Grip Range
(铆接钣厚)
d0
+0.05
d(max)
Dk±0.30
K±0.20
L ±0.30
d(max)
Dk±0.30
K±0.20
L ±0.30
-0.00
M3*0.5 HEX30509-2.0 5.0 5.0 7.0 0.80 8.5 5.0 7.0 0.80 16 0.5-2.0
M4*0.7 HEX40610.5-2.5 6.0 6.0 9.0 0.80 10.5 6.0 9.0 0.80 17 0.5-2.5
M5*0.8 HEX50712.5-3 7.0 7.0 10.0 1.00 12.5 7.0 10.0 1.00 19 0.5-3.0
M6*1.0 HEX60915-3 9.0 9.0 12.0 1.30 15.0 9.0 12.0 1.30 22 0.5-3.0
M6*1.0 HEX609.615.5-3.5 9.6 9.6 12.6 1.00 15.5 9.6 12.6 0.90 22 0.5-3.5
M8*1.25 HEX81118-4 11.0 11.0 14.5 1.50 18.0 11.0 15.0 1.50 28 0.5-4.0
M10*1.5 HEX101322.5-5 13.0 13.0 16.5 1.80 21.0 13.0 16.5 1.80 30 1.0-5.0
M12*1.75 HEX121524-6 15.0 15.0 18.0 2.00 24.0 15.0 19.0 2.00 36 1.5-6.0
备注:可根据客户需要生产本规格表以外尺寸及特殊形状的拉帽。

Material:304Stainless steel 、316Stainless steel、Carbon steel、Aluminum、Brass       UINT:inch
螺纹规格Thread Size
产品编号
Part Number
钻孔直径
Open End(通孔)
Closed End(盲孔)
(H)Grip Range
(铆接钣厚)
d0
+.002
d(max)
Dk±.012
K±.008
L ±.012
d(max)
Dk±.012
K±.008
L ±.012
-.00
6-32UNC HEX632058.5-2.0 .197 .197 .276 .031 .335 .197 .276 .031 .630 .020-.079
8-32UNC HEX8320610.5-2.5 .236 .236 .354 .031 .413 .236 .354 .031 .669 .020-.098
10-24UNC HEX10240712.5-3 .276 .276 .394 .039 .492 .276 .394 .039 .748 .020-.118
1/4-20UNC HEX-14200915-3 .354 .354 .472 .051 .591 .354 .472 .051 .866 .020-.118
1/4-20UNC HEX12049.615.5-3.5 .378 .378 .496 .039 .610 .378 .496 .039 .866 .020-.138
5/16UNC HEX5161118-4 .433 .433 .591 .059 .709 .433 .591 .059 1.102 .020-.157
3/8-16UNC HEX381321-5 .512 .512 .650 .071 .827 .512 .650 .071 1.181 .039-.197
1/2-13UNC HEX12131524-6 .591 .591 .709 .079 945 .591 .709 .079 1.417 .059-.236


Note:We can produce other size and special shape insert nuts according to the customers'requests outside this table.
