拉铆螺母

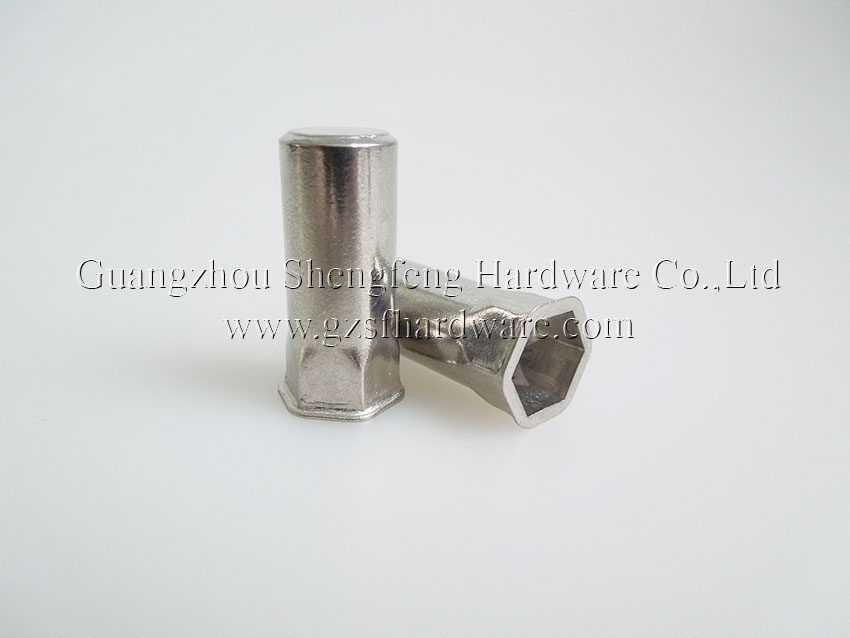

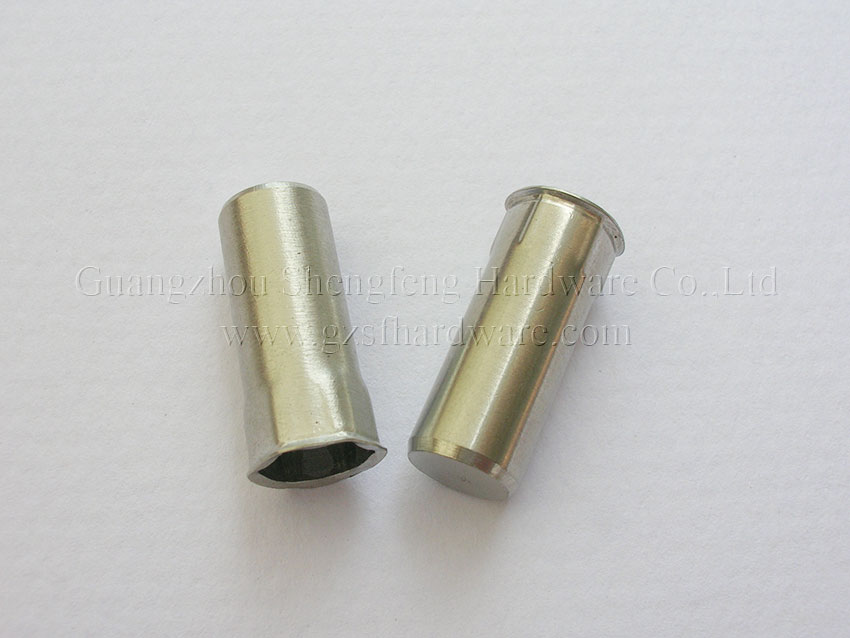

小头半六角盲孔铆螺母

 材质:304不锈钢、316不锈钢、碳钢、铝合金、铜单位:mm螺纹规格Thread Size产品编号Part Number钻孔直径Open End(通孔)Closed End(盲孔)(H)Grip Range(铆接钣厚)d0+0.05d(max)Dk±0.30K±0.20L ±0.30d(max)Dk±0.30K±0.20L
品牌:晟峰 S.F 表面处理:多种
产品详情







材质:304不锈钢、316不锈钢、碳钢、铝合金、铜 单位:mm
螺纹规格
Thread Size
产品编号
Part Number
钻孔直径
Open End(通孔)
Closed End(盲孔)
(H)Grip Range
(铆接钣厚)
d0
+0.05
d(max)
Dk±0.30
K±0.20
L ±0.30
d(max)
Dk±0.30
K±0.20
L ±0.30
-0.00
M3*0.5 SH30509-2 5.0 5.0 5.5 0.35 8.5 5.0 5.5 0.35 15 0.5-2.0
M4*0.7 SH40610-2.5 6.0 6.0 6.75 0.50 10 6.0 6.75 0.50 16 0.5-2.5
M5*0.8 SH50712-3.0 7.0 7.0 8.0 0.60 12 7.0 8.0 0.60 18 0.5-2.5
M6*1.0 SH60914-3.0 9.0 9.0 10.0 0.60 14 9.0 10.0 0.60 21 0.5-3.0
M6*1.0 SH609.614.5-3.5 9.6 9.6 11.0 0.60 14.5 9.6 11.0 0.60 21 0.5-3.0
M8*1.25 SH81116.5-4 11.0 11.0 12.0 0.60 16.5 11.0 12.0 0.60 26.5 0.5-4.0
M10*1.5 SH101319-5.0 13.0 13.0 14.5 0.85 20 13.0 14.5 0.85 28 1.0-5.0
M12*1.75 SH121524-6 15.0 15.0 16.5 0.85 24 15.0 16.5 0.85 36 1.5-6.0
备注:可根据客户需要生产本规格表以外尺寸及特殊形状的拉帽。

Material:304Stainless steel 、316Stainless steel、Carbon steel、Aluminum、Brass UINT:inch
螺纹规格
Thread Size
产品编号
Part Number
钻孔直径
Open End(通孔)
Closed End(盲孔)
(H)Grip Range
(铆接钣厚)
d0
+.002
d(max)
Dk±.012
K±.008
L ±.012
d(max)
Dk±.012
K±.008
L ±.012
-.00
6-32UNC SH632058.5-2.0 .197 .197 .217 .014 .335 .197 .217 .014 .591 .020-.079
8-32UNC SH8326.510-2.5 .252 .252 .276 .020 0.394 .252 .276 .020 .630 .020-.098
10-24UNC SH10240712-3.0 .276 .276 .315 .024 .472 .276 .315 .024 .709 .020-.098
1/4-20UNC SH14200914-3.0 .354 .354 .393 .024 .552 .354 .393 .024 .827 .020-.118
1/4-20UNC SH14209.614.5-3.5 .378 .378 .433 .024 .571 .378 .433 .024 .827 .020-.118
5/16-18UNC SH5161116.5-4 .433 .433 .472 .024 .650 .433 .472 .024 1.043 .020-.157
3/8-16UNC SH381319-5.0 .512 .512 .571 .033 .787 .512 .571 .033 1.102 .039-.197
1/2-13UNC SH12131524-6 .591 .591 .650 .033 .945 .591 .650 .033 1.417 .059-.236


Note:We can produce other size and special shape insert nuts according to the customers'requests outside this table.
